Calibrating Excellence at Hazira & Dibiyapur
INDUSTRY Expertise:
Decades of excellence in gas flow management and metrology.
STATE-OF-THE-ART FACILITY:
Advanced equipment and processes ensuring precise calibration.
GLOBAL STANDARDS:
Compliant with international metering and accuracy norms.
TRUSTED BYL EADERS:
Serving major players across pipelines, utilities, and energy sectors.

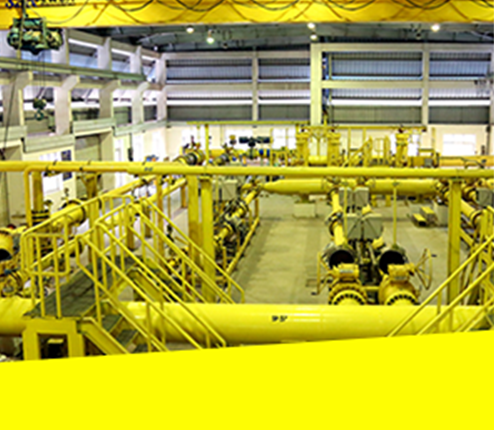

About Our Facility
INDUSTRIES WE SERVE
Oil & Gas Transmission
ENERGY & UTILITIES
pipeline infrastructure
industrial measurement solutions
Your Flow
Meter Experts
Hazira Meter Prover Facility Specification As Below:
| Type | Open Loop |
|---|---|
| Flow Range | 10–10000 m³/hr |
| Test Meter Size | 2" to 30" |
| Calibration Pressure | 4 to 35 bar (Fixed as per unit calibration) |
| Test Medium | Natural Gas |
| Test Meter Types | All type of flow meters - USM, TUR, ORF and more |
| Test Meter Class | 0.5Q and above |
| Temperature Stability | Better than ±0.05 °C |
| Pressure Stability | Better than 0.05 bar |
| Best CMC | 0.21% |
| Metrological Partner | VSL, The Netherlands |
| Accreditation | ISO 17025:2017 by NABL India |
Dibyapur Meter Prover Facility Specification As Below:
| Type | Closed Loop |
|---|---|
| Flow Range | 2–1500 m³/hr |
| Test Meter Size | 2" to 12" |
| Calibration Pressure | Variable, 2 to 8 bar |
| Test Medium | Natural Gas |
| Test Meter Types | USM, TUR, ORF |
| Test Meter Class | 0.5Q and above |
| Temperature Stability | Better than ±0.05 °C |
| Pressure Stability | Better than 0.05 bar |
| Best CMC | 0.12% |
| Metrological Partner | PTB, Germany |
| Accreditation | ISO 17025:2005 by NABL India |
